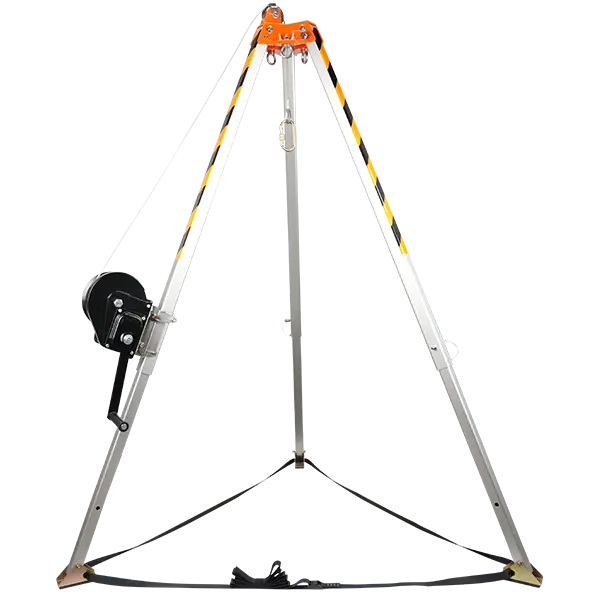

Rescue Tripod With Winch HT-90620 & 90630

  • Mobile rescue tripod, suitable for lifting heavy objects, fixing and rescue use;

  • Equipped with adjustable locking legs and three anchor connections, economical for many restricted space, fall environment and rescue environment;

  • Aluminum tripod, corrosion resistant coating, high strength;

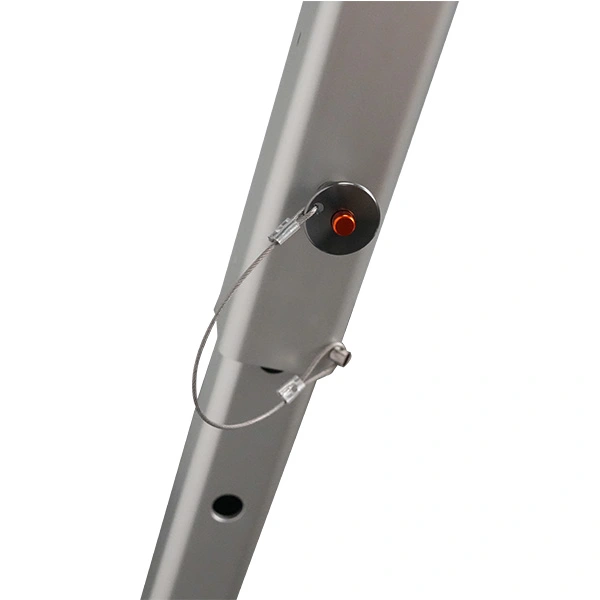

  • 2-stage independent adjustable telescopic leg, fixed with stainless steel rod, with collapsible rubber sole and sharp edge at the bottom. Independent adjustable legs for uneven surfaces.

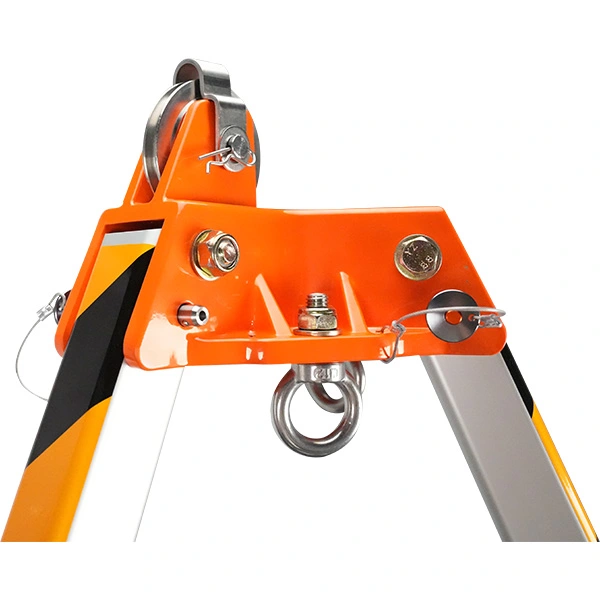

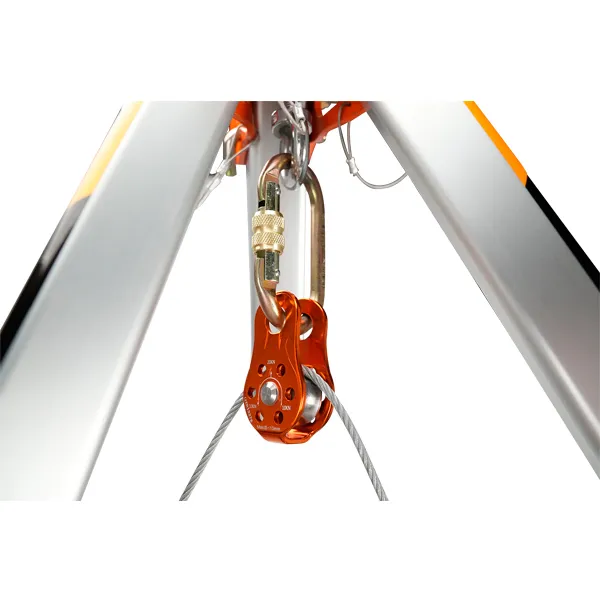

  • A built-in pulley and top structure, excellent performance and reliability;

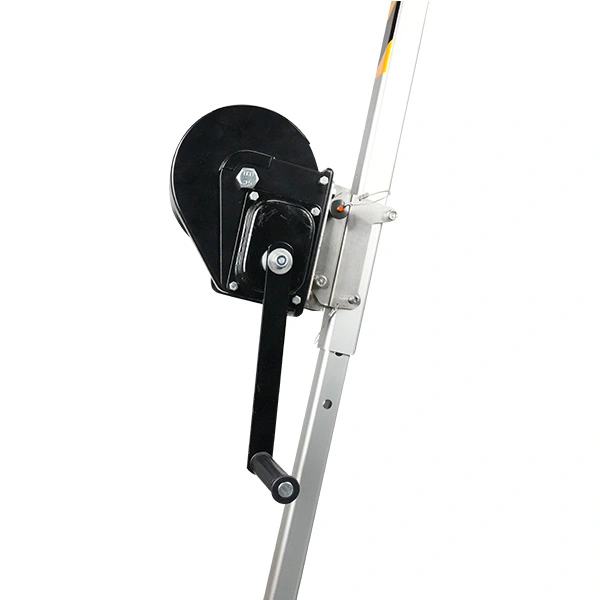

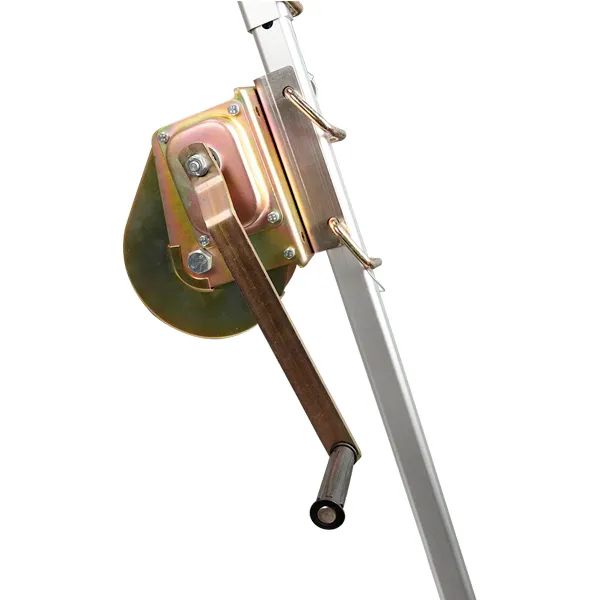

  • Equipped with a release latch and a two-way rotating handle for rescue and lifting operations;

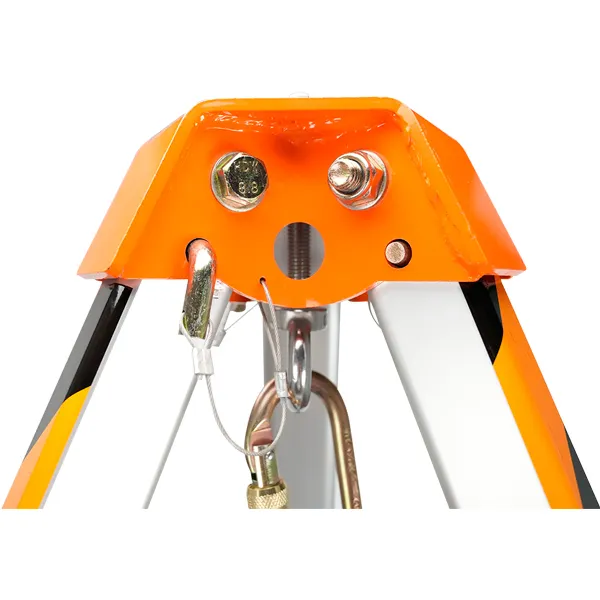

  • Steel double action terminal connection lock;

  • The tripod configuration supports the safety chain to prevent the risk of falling;

  • With nylon portable equipment bag; Easy to reuse and carry.

Specification of Rescue Tripod With Winch HT-90620 & 90630


Ref.MaterialsSteel Wire LengthSteel wire DiaAdjustable HeightWheelbase FootprintMax LoadWeightCE
HT-90620Aluminum+Steel20m4.8mm1.15 to 2.15m1.8m Diameter500kg23620gEN795:2012
HT-9063030m25195g
